BURKHARD Sprühkopf

We design, manufacture and distribute standard and special spray balls made of stainless steel – our experience for your success.

Watch image film

BURKHARD spray balls – the cleanest solution

Since 2011, we have been THE point of contact when it comes to cleaning tanks and containers thoroughly. Whether you need a standard spray ball or a special solution that meets particular requirements, we will provide it.

We have standard spray balls in the most common sizes already in stock, or for special spray balls, you can choose from our extensive database or we will design the right spray ball for you according to your specifications. On top of this, we manufacture all of our products 100% in-house, resulting in short delivery lead times.

As we are equipped with the latest machinery, we can also work directly with your CAD data. Stainless steel is not simply stainless steel – especially with sensitive media, selecting the right alloy is crucial to the success of your cleaning. We are happy to advise you on this.

Your point of contact

BURKHARD Vertriebs GmbH

Julius-Probst-Straße 7
87600 Kaufbeuren, Germany

Spray ball expertise
Technical information

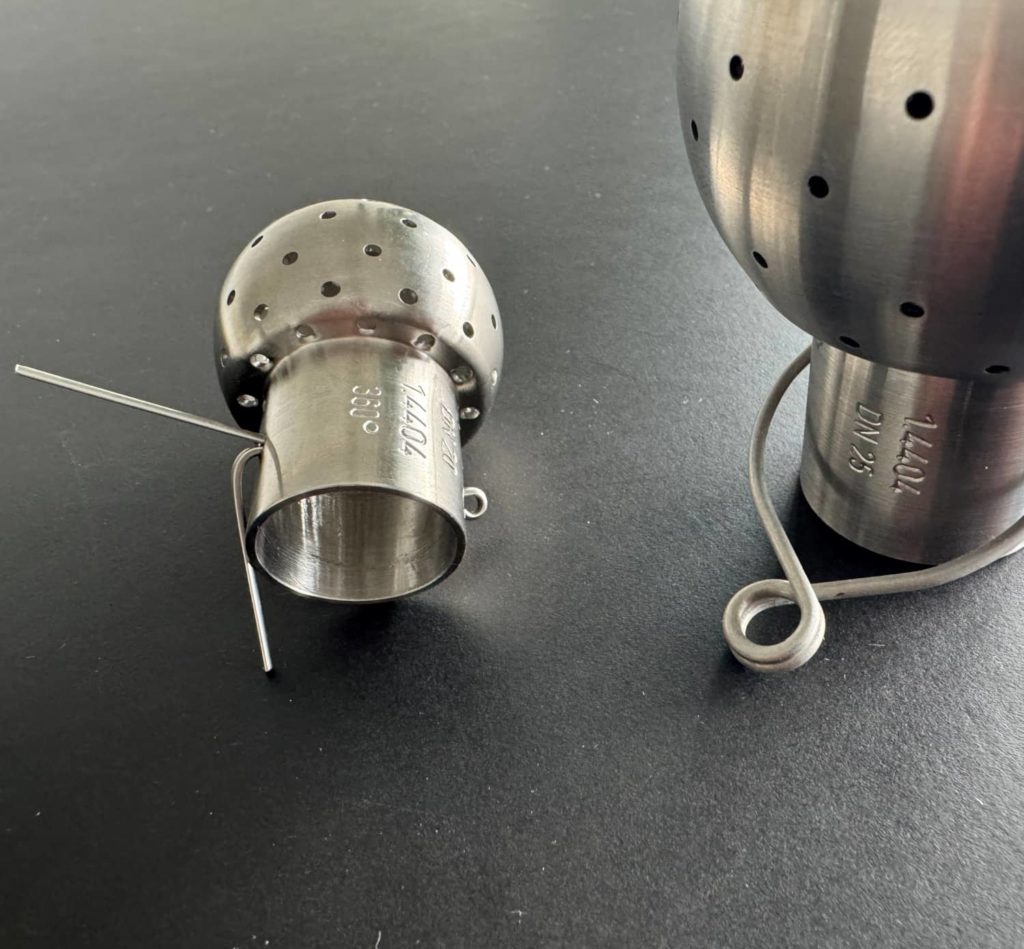

Spray ball with push-in connection
Spray ball with screw connection
Spray ball for welding

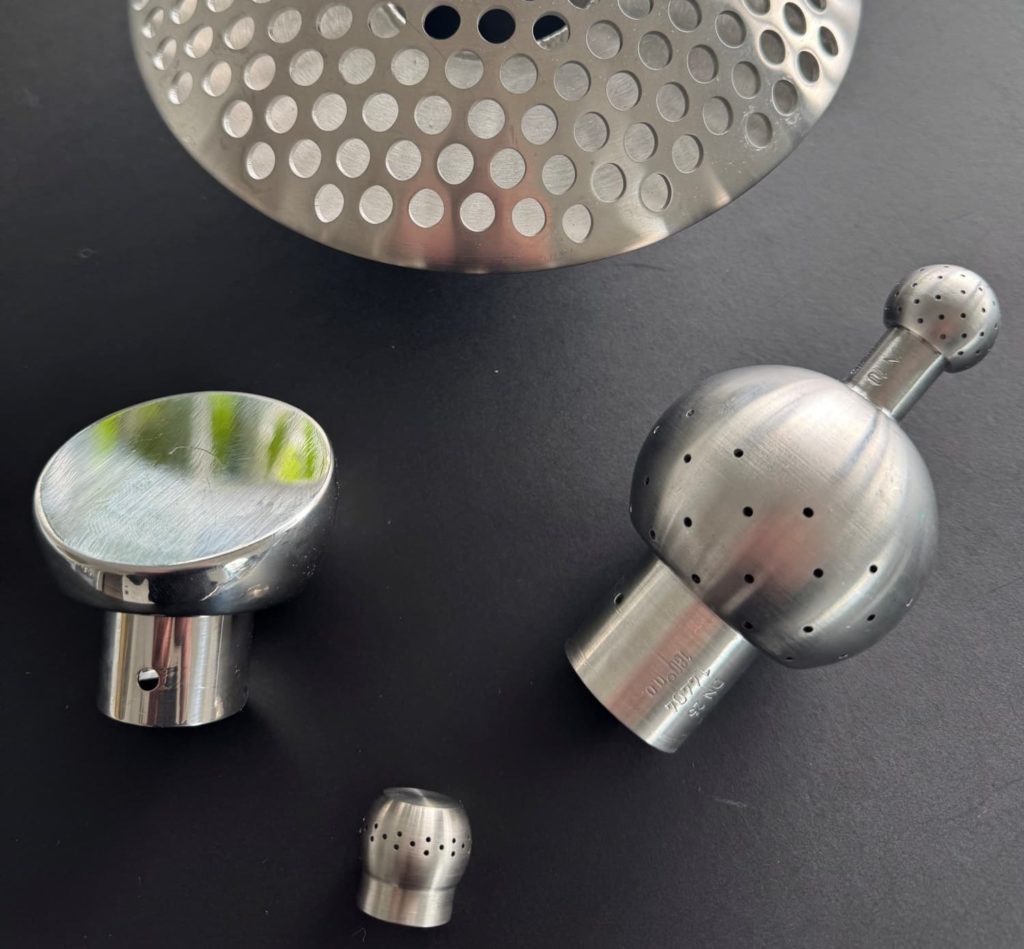

Custom special spray balls
QA/lab

Spray balls for the cleaning in place (CIP) of tanks and containers, directly from the manufacturer

BURKHARD spray balls are used for the low-pressure cleaning of the insides of containers, tanks, receptacles and machines of all kinds
The main application areas are the food industry, medical technology, the pharmaceutical industry, biotechnology and general mechanical engineering
The cleaning effect is achieved through the wetting and rinsing of the container walls. The impact of the cleaning can be increased by adding cleaning agents, which also speeds up the cleaning process

Our services

Production and distribution of stainless steel spray balls for the global market
Product testing on our own test bench
Special designs

Application examples

Spruehkoepfe Tankreinigung BURKHARD Group

Standard nominal diameters
DN8 DN10 DN15 DN20 DN25 DN32 DN40 DN50
Standard spray ball angles

360º full spray angle

270º upward spray angle – with drainage hole

180º upward half spray angle

180º downward half spray angle
Special spray balls possible in almost every variant to meet your specific requirements
Adaptation with push-in, screw or weld connection
Thread adaptation with the following threads: ¼″, ½″, ¾″, ⅜″, 1″, 1½″, 2″
Annular gap between the installed spray ball’s nozzle and the customer’s pipe to allow this area of the connecting pipe to be cleaned
Standard spray balls designed for connecting pipes that comply with DIN 11850 series 1 or 2; special designs possible at any time
Standard spray balls ground on the outside, generally with a roughness of Ra 0.2–0.3 mµ

Application examples

Bearbeitung eines Edelstahl-Sprühkopfes mit einem Laser

Technische Informationen BURKHARD Spruehkopf

Static spray ball with push-in connection

For the cleaning in place (CIP) of containers and tanks.
The connection between the supply pipe and the spray ball is secured by either a split pin or a retaining clip.
Our spray balls are most effective in the low-pressure range between 1 bar and 2.5 bar.

DN8

Technical data:

A:	7,5 mm
ØB:	8,2 mm
ØC:	2,5 mm
ØD:	20 mm
H:	32,8 mm
Safety pin:	0,8 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 0,8 mm:
Flow rate at 1,0bar:	~0,7 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,4 m

DN10

Technical data:

A:	8,5 mm
ØB:	12,3 mm
ØC:	2,5 mm
ØD:	24 mm
H:	37 mm
Safety pin:	1,8 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 1,2 mm:
Flow rate at 1,0bar:	~2,4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,8 m

DN15

Technical data:

A:	9 mm
ØB:	18,3 mm
ØC:	2,5 mm
ØD:	30 mm
H:	38,5 mm
Safety pin:	2,2 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

DN20

Technical data:

A:	11 mm
ØB:	22,3 mm
ØC:	2,5 / 3,5 mm
ØD:	39 mm
H:	53 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~12 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~6 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

DN25

Technical data:

A:	16 mm
ØB:	28,3 mm
ØC:	3 mm
ØD:	64 mm
H:	84,5 mm
Safety pin:	2,2 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~9 m³/h
Flow rate at 2,5bar:	~14 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7 m³/h
Flow rate at 2,5bar:	~11 m³/h
Spray diameter Ø:	~3 m

DN25/1

Technical data:

A:	16 mm
ØB:	28,3 mm
ØC:	3 mm
ØD:	64 mm
H:	84,5 mm
Safety pin:	2,2 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~18 m³/h
Flow rate at 2,5bar:	~28 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~16 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~12 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~4 m

DN32

Technical data:

A:	16 mm
ØB:	34,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	80,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~13 m³/h
Flow rate at 2,5bar:	~20 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~18 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~3,5 m

DN32/1

Technical data:

A:	16 mm
ØB:	34,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	80,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~34 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN40

Technical data:

A:	18 mm
ØB:	40,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	79,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~15 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

DN40/1

Technical data:

A:	18 mm
ØB:	40,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	79,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~22 m³/h
Flow rate at 2,5bar:	~36 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~15 m³/h
Flow rate at 2,5bar:	~24 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN50

Technical data:

A:	25 mm
ØB:	52,3 mm
ØC:	3,5 / 3,5 mm
ØD:	90 mm
H:	118 mm
Safety pin:	2,8 mm
Safety clip:	2,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~28 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~27 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~30 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~27 m³/h
Spray diameter Ø:	~5 m

DN50/1

Technical data:

A:	25 mm
ØB:	52,3 mm
ØC:	3,5 / 3,5 mm
ØD:	90 mm
H:	118 mm
Safety pin:	2,8 mm
Safety clip:	2,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~49 m³/h
Flow rate at 2,5bar:	~69 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~45 m³/h
Flow rate at 2,5bar:	~67 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~31 m³/h
Flow rate at 2,5bar:	~51 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~30 m³/h
Flow rate at 2,5bar:	~49 m³/h
Spray diameter Ø:	~6 m

Application examples

Sprühkopf mit Steckverbindung BURKHARD Group

Static spray ball with screw connection

For the cleaning in place (CIP) of containers and tanks.
The spray ball is secured to the supply pipe by a screw connection.
Our spray balls are most effective in the low-pressure range between 1 bar and 2.5 bar.

1/4"

Zeichnung Sprühkopf mit Schraubverbindung

Technical data:

B:	1/4"
ØD:	30 mm
H:	39,2 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3,2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,6 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,1 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

3/8"

Technical data:

B:	3/8"
ØD:	30 mm
H:	39,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3,4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,8 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

1/2"

Technical data:

B:	1/2"
ØD:	40 mm
H:	49,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7,7 m³/h
Flow rate at 2,5bar:	~11,6 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7,1 m³/h
Flow rate at 2,5bar:	~10,4 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5,2 m³/h
Flow rate at 2,5bar:	~7,7 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5,1 m³/h
Flow rate at 2,5bar:	~7,7 m³/h
Spray diameter Ø:	~2,5 m

3/4"

Technical data:

B:	3/4"
ØD:	64 mm
H:	81 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8,5 m³/h
Flow rate at 2,5bar:	~12,9 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~6,8 m³/h
Flow rate at 2,5bar:	~10,4 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5,2 m³/h
Flow rate at 2,5bar:	~7,9 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~4,7 m³/h
Flow rate at 2,5bar:	~7,1 m³/h
Spray diameter Ø:	~3 m

1"

Technical data:

B:	1"
ØD:	64 mm
H:	80,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8,1 m³/h
Flow rate at 2,5bar:	~12,2 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7,2 m³/h
Flow rate at 2,5bar:	~10,9 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5 m³/h
Flow rate at 2,5bar:	~7,4 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~4,7 m³/h
Flow rate at 2,5bar:	~7,2 m³/h
Spray diameter Ø:	~4 m

1 1/2"

Technical data:

B:	1 1/2"
ØD:	90 mm
H:	104 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~23,6 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~22 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~12,5 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17,9 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

2"

Technical data:

B:	2"
ØD:	90 mm
H:	116 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~22,4 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~21,7 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~12,8 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17,9 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Application examples

Sprühköpfen mit Schraubverbindung BURKHARD Group

Static spray ball for welding

For the cleaning in place (CIP) of containers and tanks.
The connection between the supply pipe and the spray ball must be welded.
Our spray balls are most effective in the low-pressure range between 1 bar and 2.5 bar.

DN8

Technical data:

ØB:	8,2 mm
ØD:	20 mm
H:	32,8 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 0,8 mm:
Flow rate at 1,0bar:	~0,7 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,4 m

DN10

Technical data:

ØB:	12,3 mm
ØD:	24 mm
H:	37 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 1,2 mm:
Flow rate at 1,0bar:	~2,4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,8 m

DN15

Technical data:

ØB:	18,3 mm
ØD:	30 mm
H:	38,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

DN20

Technical data:

ØB:	22,3 mm
ØD:	39 mm
H:	53 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~12 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~6 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

DN25

Technical data:

ØB:	28,3 mm
ØD:	64 mm
H:	84,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~9 m³/h
Flow rate at 2,5bar:	~14 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7 m³/h
Flow rate at 2,5bar:	~11 m³/h
Spray diameter Ø:	~3 m

DN25/1

Technical data:

ØB:	28,3 mm
ØD:	64 mm
H:	84,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~18 m³/h
Flow rate at 2,5bar:	~28 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~16 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~12 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~4 m

DN32

Technical data:

ØB:	34,3 mm
ØD:	64 mm
H:	80,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~13 m³/h
Flow rate at 2,5bar:	~20 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~18 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~3,5 m

DN32/1

Technical data:

ØB:	34,3 mm
ØD:	64 mm
H:	80,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~34 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN40

Technical data:

ØB:	40,3 mm
ØD:	64 mm
H:	79,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~15 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

DN40/1

Technical data:

ØB:	40,3 mm
ØD:	64 mm
H:	79,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~22 m³/h
Flow rate at 2,5bar:	~36 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~15 m³/h
Flow rate at 2,5bar:	~24 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN50

Technical data:

ØB:	52,3 mm
ØD:	90 mm
H:	118 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~28 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~27 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~30 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~27 m³/h
Spray diameter Ø:	~5 m

DN50/1

Technical data:

ØB:	52,3 mm
ØD:	90 mm
H:	118 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~49 m³/h
Flow rate at 2,5bar:	~69 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~45 m³/h
Flow rate at 2,5bar:	~67 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~31 m³/h
Flow rate at 2,5bar:	~51 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~30 m³/h
Flow rate at 2,5bar:	~49 m³/h
Spray diameter Ø:	~6 m

Application examples

Spruehkopf mit Schweißverbindung von BURKHARD Group

Get your custom spray ball here!

-in any shape, material and hole pattern-

We follow your specifications
We do the designing for you
We produce an exact replica of your existing spray ball using our 3D scanner

Application examples

Beispiele von Sondersprühköpfen BURKHARD Group

BURKHARD Spruehkopf Beispiel eines Sprühkopfes

Guaranteed quality

All of our products can be reproduced in the same quality at any time thanks to continuous monitoring of the manufacturing process.

Tested quality.
Quality checks with documentation and test certificates.

Our services

3D measurement, even of complex geometries, incl. reverse engineering
Ground specimens – extremely precise testing with documentation suitable for use in a court of law
Hardness tests incl. test certificate
Tensile force measurements demonstrating how strong our connections are
Non-destructive alloy tests using X-ray fluorescence analysis – a service we can also provide on your premises
Company certified according to DIN ISO 9001:2015
All quality tests with full documentation upon request
Spray balls compliant with EC Regulation 1935/2004

Application examples

Ein Mitarbeiter arbeitet an einer modernen Maschine zur Bearbeitung von Metallteilen in einer Werkstatt

Qualitätssicherung der Sprühköpfe BURKHARD Group

FaroArmVermessung bei Spruehkopf BURKHARD

Spray ball expertise

Spray balls for the cleaning in place (CIP) of tanks and containers, directly from the manufacturer

BURKHARD spray balls are used for the low-pressure cleaning of the insides of containers, tanks, receptacles and machines of all kinds
The main application areas are the food industry, medical technology, the pharmaceutical industry, biotechnology and general mechanical engineering
The cleaning effect is achieved through the wetting and rinsing of the container walls. The impact of the cleaning can be increased by adding cleaning agents, which also speeds up the cleaning process

Our services

Production and distribution of stainless steel spray balls for the global market
Product testing on our own test bench
Special designs

Application examples

Technical information

Standard nominal diameters
DN8 DN10 DN15 DN20 DN25 DN32 DN40 DN50
Standard spray ball angles

360º full spray angle

270º upward spray angle – with drainage hole

180º upward half spray angle

180º downward half spray angle
Special spray balls possible in almost every variant to meet your specific requirements
Adaptation with push-in, screw or weld connection
Thread adaptation with the following threads: ¼″, ½″, ¾″, ⅜″, 1″, 1½″, 2″
Annular gap between the installed spray ball’s nozzle and the customer’s pipe to allow this area of the connecting pipe to be cleaned
Standard spray balls designed for connecting pipes that comply with DIN 11850 series 1 or 2; special designs possible at any time
Standard spray balls ground on the outside, generally with a roughness of Ra 0.2–0.3 mµ

Application examples

Spray ball with push-in connection

Static spray ball with push-in connection

DN8

Technical data:

A:	7,5 mm
ØB:	8,2 mm
ØC:	2,5 mm
ØD:	20 mm
H:	32,8 mm
Safety pin:	0,8 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 0,8 mm:
Flow rate at 1,0bar:	~0,7 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,4 m

DN10

Technical data:

A:	8,5 mm
ØB:	12,3 mm
ØC:	2,5 mm
ØD:	24 mm
H:	37 mm
Safety pin:	1,8 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 1,2 mm:
Flow rate at 1,0bar:	~2,4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,8 m

DN15

Technical data:

A:	9 mm
ØB:	18,3 mm
ØC:	2,5 mm
ØD:	30 mm
H:	38,5 mm
Safety pin:	2,2 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

DN20

Technical data:

A:	11 mm
ØB:	22,3 mm
ØC:	2,5 / 3,5 mm
ØD:	39 mm
H:	53 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~12 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~6 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

DN25

Technical data:

A:	16 mm
ØB:	28,3 mm
ØC:	3 mm
ØD:	64 mm
H:	84,5 mm
Safety pin:	2,2 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~9 m³/h
Flow rate at 2,5bar:	~14 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7 m³/h
Flow rate at 2,5bar:	~11 m³/h
Spray diameter Ø:	~3 m

DN25/1

Technical data:

A:	16 mm
ØB:	28,3 mm
ØC:	3 mm
ØD:	64 mm
H:	84,5 mm
Safety pin:	2,2 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~18 m³/h
Flow rate at 2,5bar:	~28 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~16 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~12 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~4 m

DN32

Technical data:

A:	16 mm
ØB:	34,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	80,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~13 m³/h
Flow rate at 2,5bar:	~20 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~18 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~3,5 m

DN32/1

Technical data:

A:	16 mm
ØB:	34,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	80,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~34 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN40

Technical data:

A:	18 mm
ØB:	40,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	79,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~15 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

DN40/1

Technical data:

A:	18 mm
ØB:	40,3 mm
ØC:	2,5 / 3,5 mm
ØD:	64 mm
H:	79,5 mm
Safety pin:	2,8 mm
Safety clip:	2,0 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~22 m³/h
Flow rate at 2,5bar:	~36 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~15 m³/h
Flow rate at 2,5bar:	~24 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN50

Technical data:

A:	25 mm
ØB:	52,3 mm
ØC:	3,5 / 3,5 mm
ØD:	90 mm
H:	118 mm
Safety pin:	2,8 mm
Safety clip:	2,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~28 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~27 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~30 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~27 m³/h
Spray diameter Ø:	~5 m

DN50/1

Technical data:

A:	25 mm
ØB:	52,3 mm
ØC:	3,5 / 3,5 mm
ØD:	90 mm
H:	118 mm
Safety pin:	2,8 mm
Safety clip:	2,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~49 m³/h
Flow rate at 2,5bar:	~69 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~45 m³/h
Flow rate at 2,5bar:	~67 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~31 m³/h
Flow rate at 2,5bar:	~51 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~30 m³/h
Flow rate at 2,5bar:	~49 m³/h
Spray diameter Ø:	~6 m

Application examples

Spray ball with screw connection

Static spray ball with screw connection

1/4"

Technical data:

B:	1/4"
ØD:	30 mm
H:	39,2 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3,2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,6 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,1 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

3/8"

Technical data:

B:	3/8"
ØD:	30 mm
H:	39,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3,4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,8 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2,2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

1/2"

Technical data:

B:	1/2"
ØD:	40 mm
H:	49,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7,7 m³/h
Flow rate at 2,5bar:	~11,6 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7,1 m³/h
Flow rate at 2,5bar:	~10,4 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5,2 m³/h
Flow rate at 2,5bar:	~7,7 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5,1 m³/h
Flow rate at 2,5bar:	~7,7 m³/h
Spray diameter Ø:	~2,5 m

3/4"

Technical data:

B:	3/4"
ØD:	64 mm
H:	81 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8,5 m³/h
Flow rate at 2,5bar:	~12,9 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~6,8 m³/h
Flow rate at 2,5bar:	~10,4 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5,2 m³/h
Flow rate at 2,5bar:	~7,9 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~4,7 m³/h
Flow rate at 2,5bar:	~7,1 m³/h
Spray diameter Ø:	~3 m

1"

Technical data:

B:	1"
ØD:	64 mm
H:	80,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8,1 m³/h
Flow rate at 2,5bar:	~12,2 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7,2 m³/h
Flow rate at 2,5bar:	~10,9 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5 m³/h
Flow rate at 2,5bar:	~7,4 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~4,7 m³/h
Flow rate at 2,5bar:	~7,2 m³/h
Spray diameter Ø:	~4 m

1 1/2"

Technical data:

B:	1 1/2"
ØD:	90 mm
H:	104 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~23,6 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~22 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~12,5 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17,9 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~3,5 m

2"

Technical data:

B:	2"
ØD:	90 mm
H:	116 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~22,4 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~21,7 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~12,8 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17,9 m³/h
Flow rate at 2,5bar:	~ - m³/h
Spray diameter Ø:	~4 m

Application examples

Spray ball for welding

Static spray ball for welding

DN8

Technical data:

ØB:	8,2 mm
ØD:	20 mm
H:	32,8 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 0,8 mm:
Flow rate at 1,0bar:	~0,7 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,4 m

DN10

Technical data:

ØB:	12,3 mm
ØD:	24 mm
H:	37 mm

Spray angle selection:

360°

Information about the selected spray ball:

	ØE = 1,2 mm:
Flow rate at 1,0bar:	~2,4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~0,8 m

DN15

Technical data:

ØB:	18,3 mm
ØD:	30 mm
H:	38,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~4 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~3 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

Information about the selected spray ball:

	ØE = 1,3 mm:
Flow rate at 1,0bar:	~2 m³/h
Flow rate at 2,5bar:	not suitable
Spray diameter Ø:	~1,5 m

DN20

Technical data:

ØB:	22,3 mm
ØD:	39 mm
H:	53 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~12 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~5 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~6 m³/h
Flow rate at 2,5bar:	~9 m³/h
Spray diameter Ø:	~2,5 m

DN25

Technical data:

ØB:	28,3 mm
ØD:	64 mm
H:	84,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~17 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~9 m³/h
Flow rate at 2,5bar:	~14 m³/h
Spray diameter Ø:	~3 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~7 m³/h
Flow rate at 2,5bar:	~11 m³/h
Spray diameter Ø:	~3 m

DN25/1

Technical data:

ØB:	28,3 mm
ØD:	64 mm
H:	84,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~18 m³/h
Flow rate at 2,5bar:	~28 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~16 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~12 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~4 m

DN32

Technical data:

ØB:	34,3 mm
ØD:	64 mm
H:	80,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~13 m³/h
Flow rate at 2,5bar:	~20 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~18 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~8 m³/h
Flow rate at 2,5bar:	~13 m³/h
Spray diameter Ø:	~3,5 m

DN32/1

Technical data:

ØB:	34,3 mm
ØD:	64 mm
H:	80,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~34 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~21 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~26 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN40

Technical data:

ØB:	40,3 mm
ØD:	64 mm
H:	79,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~19 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~10 m³/h
Flow rate at 2,5bar:	~15 m³/h
Spray diameter Ø:	~3,5 m

Information about the selected spray ball:

	ØE = 2,0 mm:
Flow rate at 1,0bar:	~11 m³/h
Flow rate at 2,5bar:	~16 m³/h
Spray diameter Ø:	~3,5 m

DN40/1

Technical data:

ØB:	40,3 mm
ØD:	64 mm
H:	79,5 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~22 m³/h
Flow rate at 2,5bar:	~36 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~33 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~15 m³/h
Flow rate at 2,5bar:	~24 m³/h
Spray diameter Ø:	~4 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~14 m³/h
Flow rate at 2,5bar:	~23 m³/h
Spray diameter Ø:	~4 m

DN50

Technical data:

ØB:	52,3 mm
ØD:	90 mm
H:	118 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~28 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~27 m³/h
Flow rate at 2,5bar:	~42 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~20 m³/h
Flow rate at 2,5bar:	~30 m³/h
Spray diameter Ø:	~5 m

Information about the selected spray ball:

	ØE = 2,2 mm:
Flow rate at 1,0bar:	~17 m³/h
Flow rate at 2,5bar:	~27 m³/h
Spray diameter Ø:	~5 m

DN50/1

Technical data:

ØB:	52,3 mm
ØD:	90 mm
H:	118 mm

Spray angle selection:

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~49 m³/h
Flow rate at 2,5bar:	~69 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~45 m³/h
Flow rate at 2,5bar:	~67 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~31 m³/h
Flow rate at 2,5bar:	~51 m³/h
Spray diameter Ø:	~6 m

Information about the selected spray ball:

	ØE = 3,0 mm:
Flow rate at 1,0bar:	~30 m³/h
Flow rate at 2,5bar:	~49 m³/h
Spray diameter Ø:	~6 m

Application examples

Custom special spray balls

Get your custom spray ball here!

-in any shape, material and hole pattern-

We follow your specifications
We do the designing for you
We produce an exact replica of your existing spray ball using our 3D scanner

Application examples

QA/lab

Guaranteed quality

All of our products can be reproduced in the same quality at any time thanks to continuous monitoring of the manufacturing process.

Tested quality.
Quality checks with documentation and test certificates.

Our services

3D measurement, even of complex geometries, incl. reverse engineering
Ground specimens – extremely precise testing with documentation suitable for use in a court of law
Hardness tests incl. test certificate
Tensile force measurements demonstrating how strong our connections are
Non-destructive alloy tests using X-ray fluorescence analysis – a service we can also provide on your premises
Company certified according to DIN ISO 9001:2015
All quality tests with full documentation upon request
Spray balls compliant with EC Regulation 1935/2004

Application examples

Overview

The services of BURKHARD Sprühkopf at a glance

Properties

Highly versatile
Thorough cleaning in place (CIP)
Top quality
Very easy to use

Services

100% in-house manufacture “Made in Bavaria”
Short delivery lead times
Product testing on our own test bench
High-quality standard material 1.4404 and 1.4571

Flexibility

Standard sizes supplied from stock
Special designs
Wide range of materials
No minimum purchase
Continual innovations
Distribution by us
Worldwide distribution

Quality

Certified according to DIN ISO 9001:2015
Certified according to CQI-9
EG-VO 1935/2004
100% tested quality

References

Container construction
Food industry
Pharmaceutical industry
Medical technology
Mechanical and plant engineering
And more

Your benefits…

100% in-house manufacture

This ensures maximum flexibility and short delivery lead times.

Batches as small as just one item

Prototypes, one-off products and custom products are our speciality.

Consistently customer oriented

We excel at overcoming challenges.

Fully reproducible manufacturing process

This means we can supply you with identical products at any time.

Precise down to the smallest detail

We use relevant measuring and testing procedures for an accurate result.

Quality – Made in Bavaria

We received our first certification back in 2011. But satisfying the ISO standard is not our goal. Instead, we aim to meet our own, significantly higher quality standards.

Our work also complies with the demanding standards of CQI-9. The Automotive Industry Action Group (AIAG) developed these evaluation parameters for suppliers in the field of heat treatment.

Against this backdrop, our team also receives continuous further training carried out within the company to ensure that their specialist knowledge and the quality of their work are always up to date.

Start a project with us

You provide us with your requirements – we provide you with a solution! Simply tell us your ideas for your desired product via this form.

Drawing on our many years of experience, we will work with you to determine the best approach and the appropriate solution.

Our team and our high-performance machinery are able to overcome any challenge. We will provide you with a product that far exceeds the usual standards.

Send us a message now. You will promptly receive specialist advice from our company.
